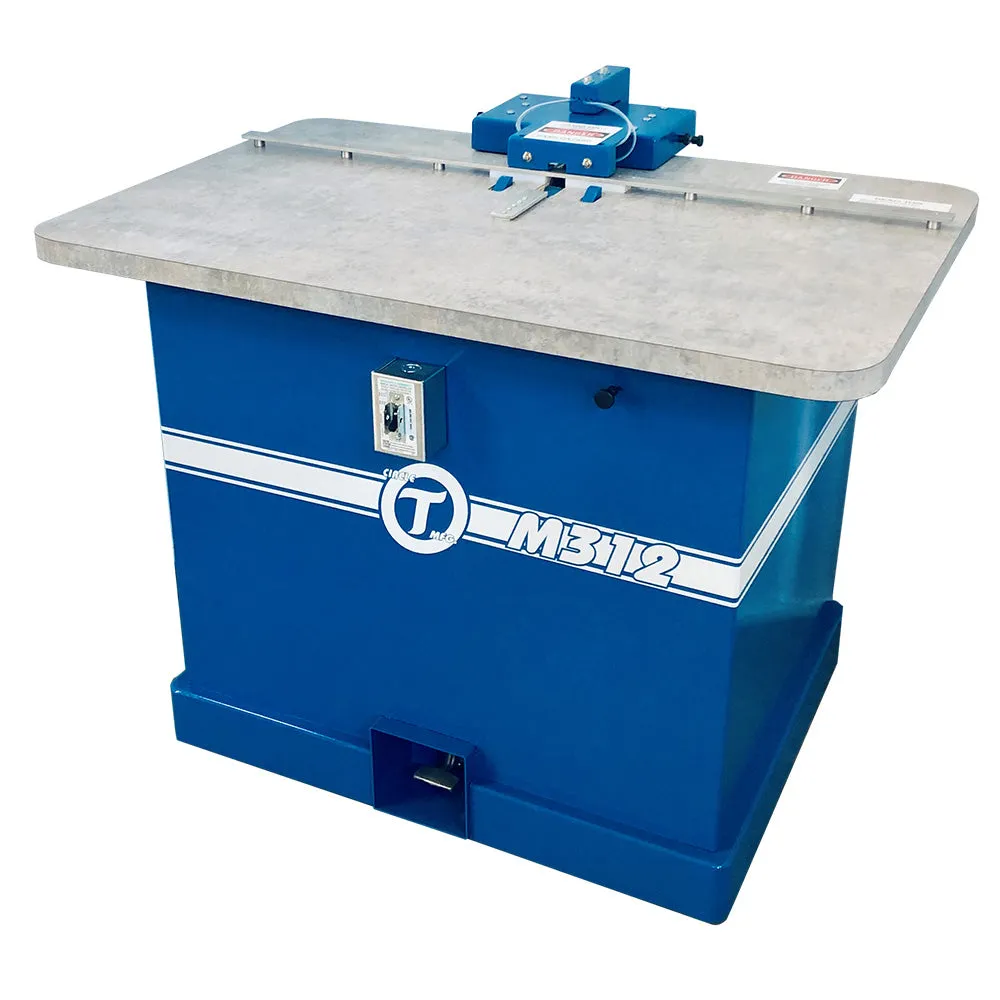

It doesn't get easier than the M312 Easy Drawer Notcher. Fast operation allows you to machine a box in ten seconds! This upgraded model includes an easy foot cycle switch, as well as easy-to-locate drawers regardless of varying box widths.

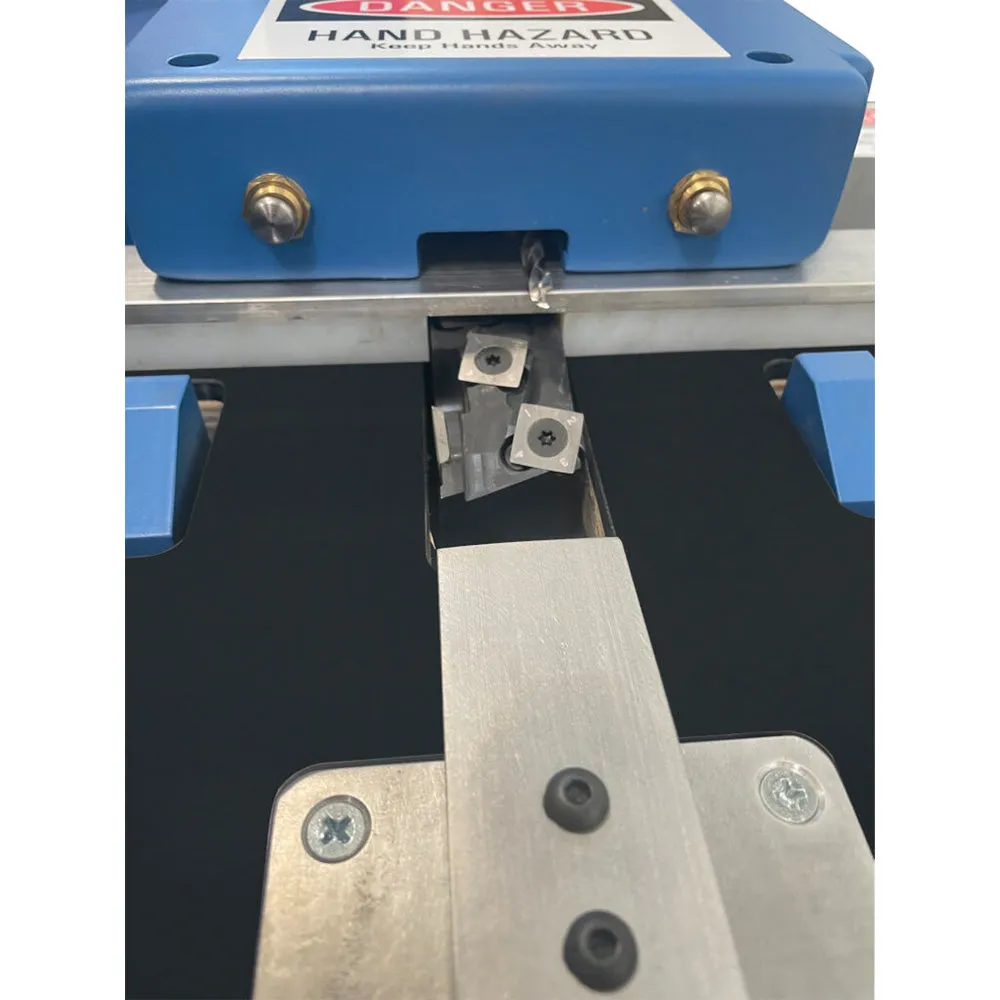

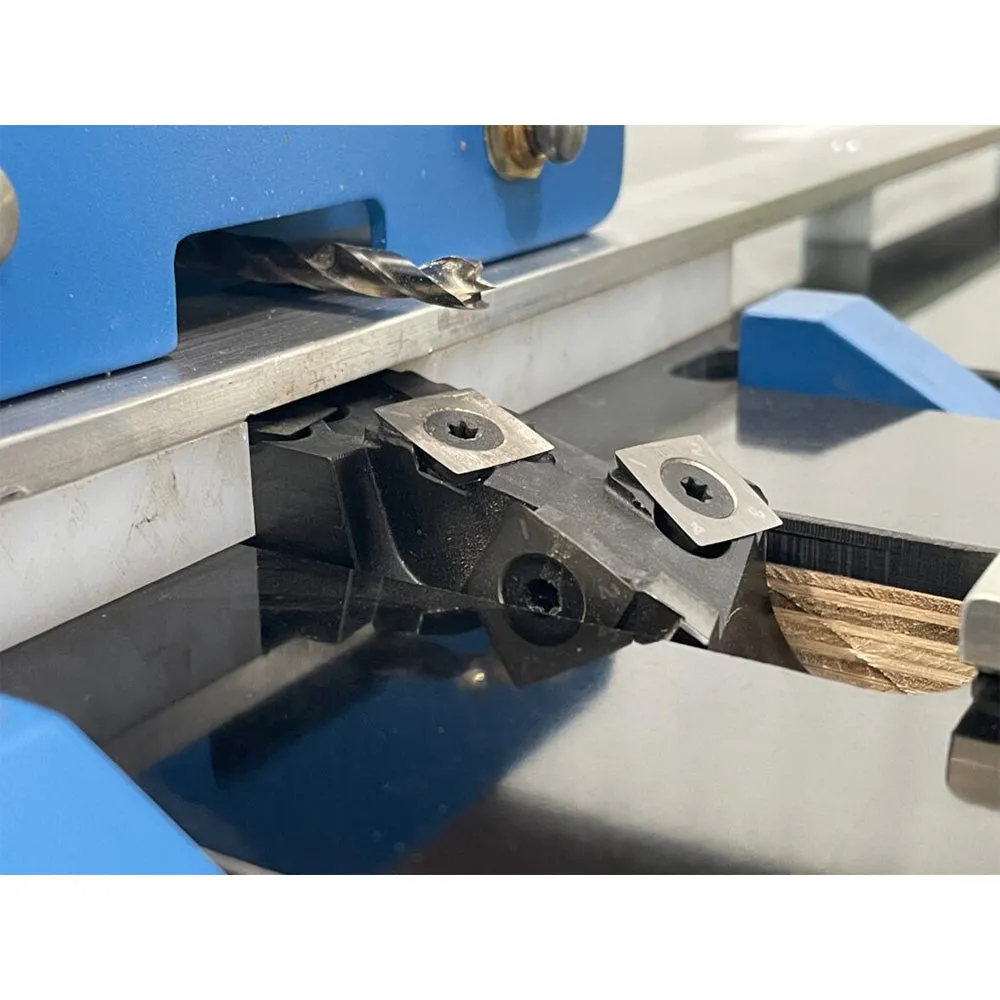

This machine is also loaded with safety features. Drawer Clamps ensure that the box does not move during cycle. The safety switch ensures that the machine cannot cycle without a drawer present. Additionally, the cutter and drill are retracted between cycles, keeping you safe from any accidental contact with the machine.
[TABS]
Features
- Foot Pedal Cycle Start
- Notch and Drill Simultaneously
- Center Fence Drawer Box Alignment
- High wear resistant Phenolic Top
- Fast Operation = 10 Seconds per box
- Safety Drawer Clamps ensure drawer box does not move during cycle
- Safety Switches ensure machine cannot cycle without a drawer present
- Safety Retraction of cutter and drill between cycles
Specs
Notch Dimension (W x H): 35 mm x 1/2″
Locating Hole Diameter: 6 mm
Operating Performance: Over 200 boxes per hour
Main Motor: 1.5hp
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 90-100 PSI to power drill and control system
Table Size: 22″ x 48″
Table Height: 36″
Footprint (W x D x H): 52″ x 42″ X 42″
Shipping Weight: 625 lbs.
Net Weight: 460 lbs.
